Flame Resistant Cable Sleeve For Thermal Wire Insulation Pet Braided Sleeving
Characteristics of braided sleeves
- Operating temperature range: -70~+155ºC
- Melt temperature: 250 ºC
- Flame retardant, UV resistant, Anti chemicals and solvents, Light weight and Flexible
- Standard color: Black, White, Grey, Yellow, Blue, Red, Green etc.
1. high temperature resistant (working temperature: -50°c ~ 150°c)
2. high melting point (250°c)
3. high fire resistant performance
4. flexible, abrasive resistance, thermal insulation
5. increased braid density coverage provides higher level of abrasion resistance without losing flexibility
6. treated yarns extinguish quickly and reduces potential flame spread to surrounding components
7. cuts with ordinary scissors without fraying ends.
It offers durable abrasion resistance in a wide range of industrial applications.
Flame Resistant Braided Cable Sleeve Computer Cable Sleeving 31.8MM BLACK is braided with environment-friendly polyester monofil. (PET, PA6, PA66, PPS).
Functions of braided sleeves
To meet the requirement of wear protection in various industrial fields .it expands the diameter to 1.5 times larger than the original size with unique weaving structure.
We have one of the most extensive ranges of insulation products, expandable braided sleeving, cable ties, and accessories on the market, suitable for a wide spectrum of industries, from electrical design and construction companies, to manufacturers of electrical products and building industries. Expandable Braided Sleeves is manufactured from Polyethylene Terepthalate, or PET, which has great properties of flexibility and strength, plus a good resistance against chemicals, and when used on wire runs, it adds protection and extra insulation.
Usages of braided sleeves
Expandable braided sleeving is already very widely used in thousands of applications like electrical panels, electronic wiring installations,communication networks, and machinery. Flame Resistant Braided Cable Sleeve Computer Cable Sleeving 31.8MM BLACK is widely used in bounding and protecting of electrical cables, automobile and aviation sectors.
Description of braided sleeves
High flame retardant braided sleeving is braided by UL 94 VO grade raw material PET mono filaments. It has excellent expandability, abrasive resistance and high flame retardant. Its flame rating can be up to VW-1.
Application electronics, automobile, high-speed rail,aviation, marine and switch cabinet wire harnessing applications where cost efficiency and durability are critical. The unique braided construction and wide expandability allows quick and easy installation over large connectors and long runs.
Ease of installation and nearly complete coverage makes fray resistance braided sleeve an ideal solution for many industrial and engineering applications.
| Advantage: | Safety, the cable storage time longer |
| Usage: | Direct set on the cable, easy to use |
| Wire Range: | Different tvpes are suitable for different cables |
| Certificate: | CE ROSH SGS |
| Delivery time: | 3-15 days (Depend on your order quantity) after confirm order |
| Payments: | T/T,Western Union,L/C ,PayPal |
Product Tags:
|
|

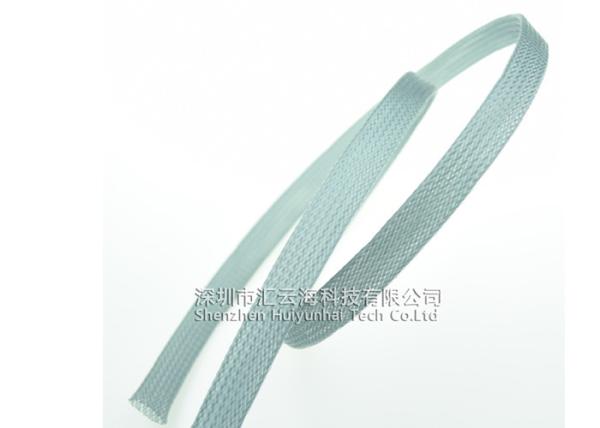

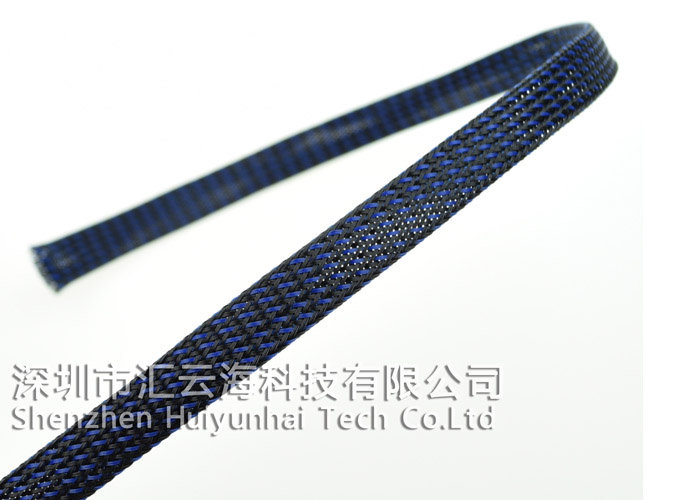

PET Flame Retardant Cable Sleeve Thermal Insulation SGS Certification Images
|
